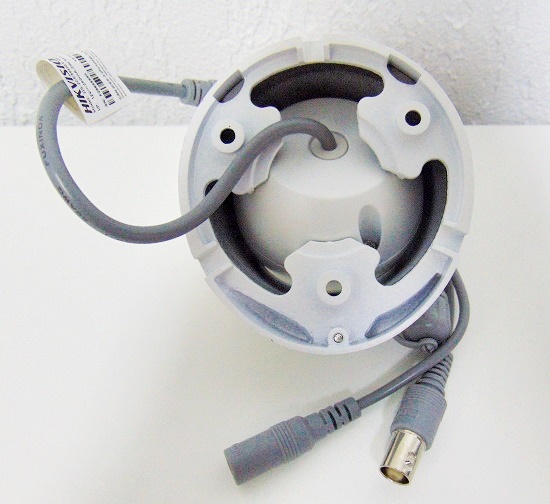

Câmera de torre fixa de 2 MP
Camera | |
Image Sensor | 2 MP CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
Day & Night | ICR |
Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
Signal System | PAL/NTSC |
Lens | |
Lens Type | 2.8 mm |
Focal Length & FOV |
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
|
Lens Mount | M12 |
Image | |
Image Parameters Switch | STD/HIGH-SAT |
Image Settings | Brightness, Sharpness, Smart IR |
Frame Rate | TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
Day/Night Mode | Auto/Color/BW (Black and White) |
Wide Dynamic Range (WDR) | Digital WDR |
Image Enhancement | BLC, HLC |
White Balance | Auto/Manual |
AGC | Yes |
Interface | |
Video Output | Switchable TVI/AHD/CVI/CVBS |
General | |
Material | Metal |
Dimension | 89.47 mm × 67.6 mm (3.52" × 2.70") |
Approx. 250 g (0.55 lb.) | |
Operating Condition | ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
Communication | HIKVISION-C |
Language | English |
Power Supply | 12 VDC ± 25% |
Consumption | Max. 3 W |
IR Range | Up to 25 m |
Approval | |
Protection | IP67 |
Datasheet (PDF, inglês, link externo)
Guia Rápido (PDF, inglês, link externo)
Manual (PDF, inglês, link externo)
