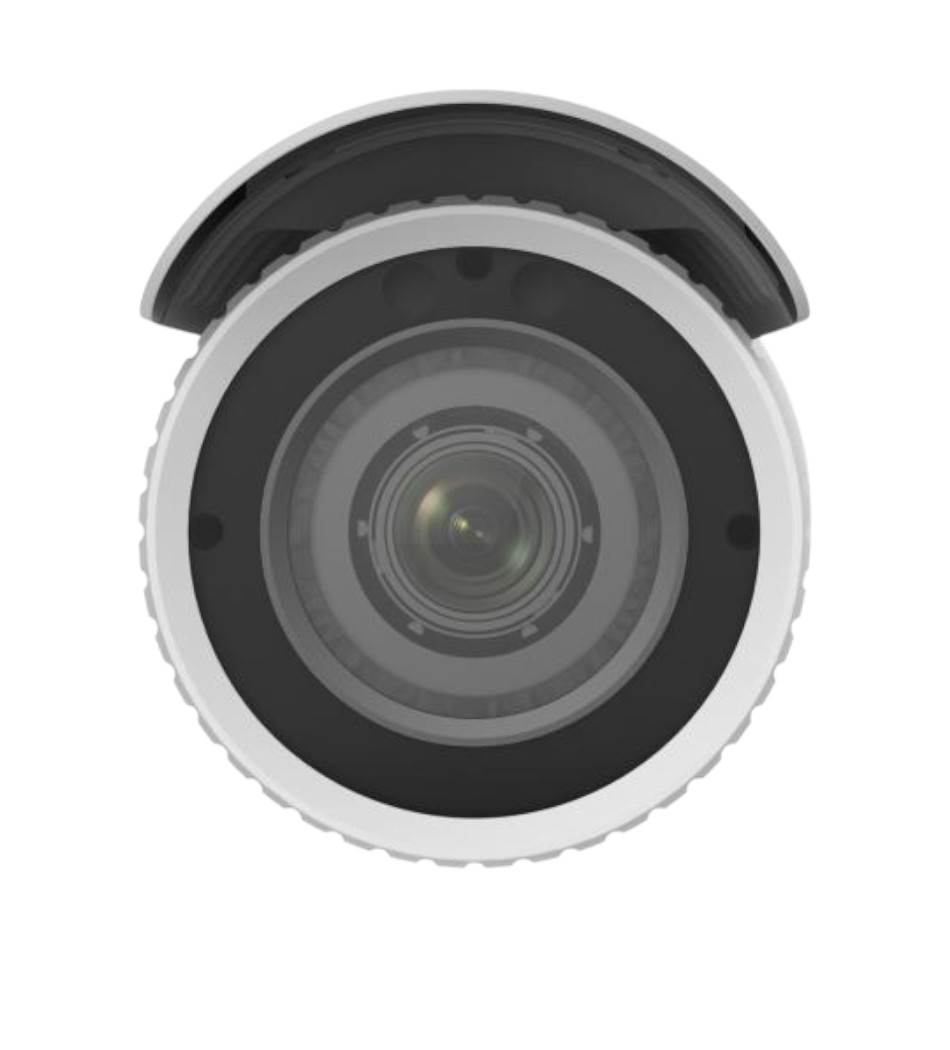

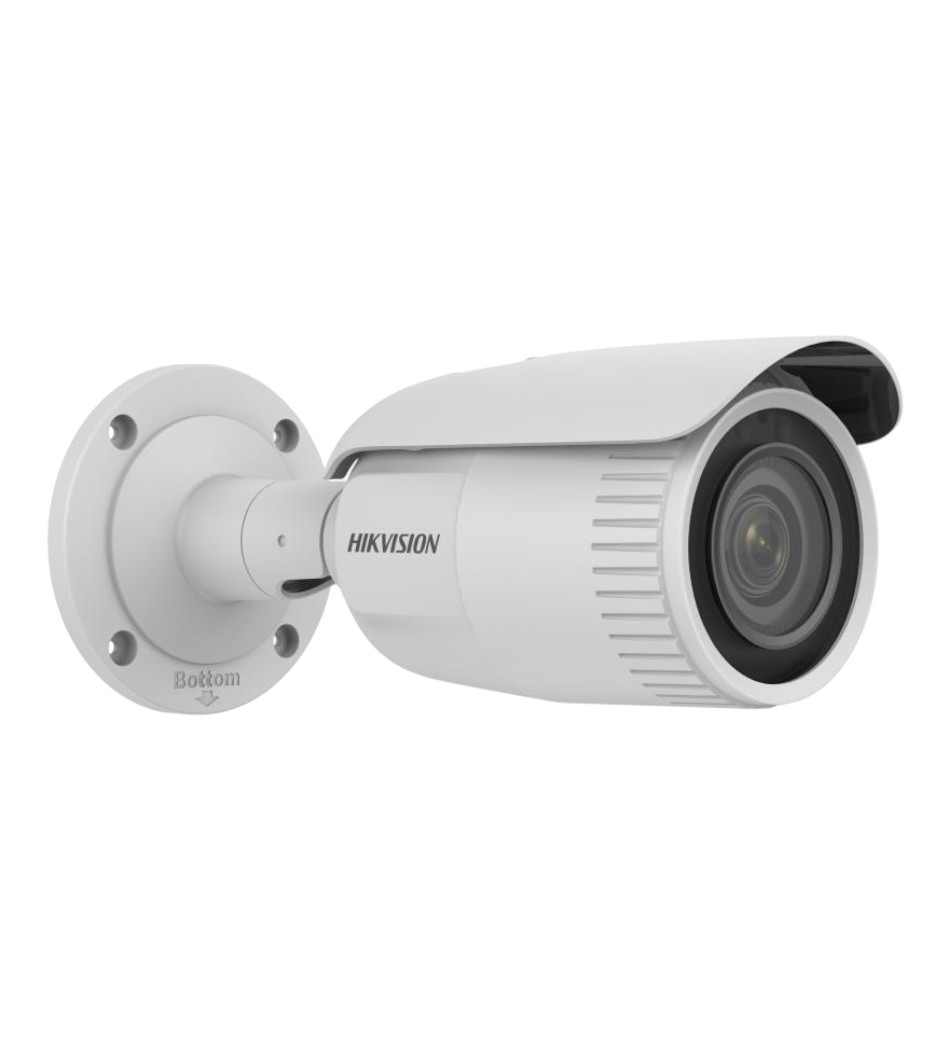

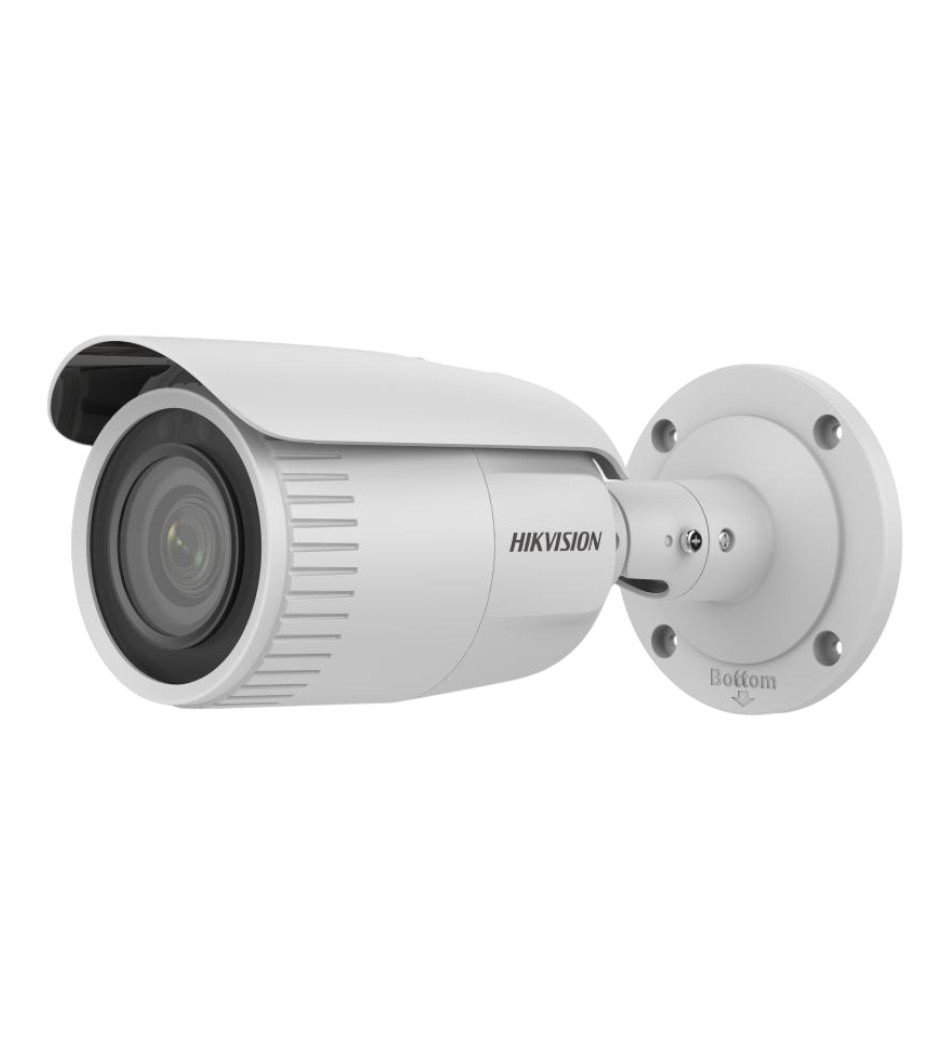

Câmera de rede varifocal de 4 MP
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Max. Resolution | 2560 × 1440 |
Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100,000 s |
Wide Dynamic Range | 120 dB |
Day & Night |
|
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
Lens | |
Lens Type |
|
Focal Length & FOV | 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36° |
Lens Mount |
|
Iris Type | Fixed |
Aperture | F1.6 |
Illuminator | |
IR Wavelength | 850 nm |
IR Range |
|
Video | |
Main Stream | 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
|
Sub-Stream | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
|
Video Compression | Sub-stream: H.265/H.264/MJPEG
|
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile/Main Profile/High Profile |
H.265 Type | Main Profile |
Region of Interest (ROI) | 1 fixed region for main stream |
Audio | |
Audio Compression | -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
Audio Bit Rate | -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
Audio Sampling Rate | -S: 8 kHz/16 kHz |
Environment Noise Filtering | -S: Yes |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface, ISAPI |
User/Host | Up to 32 users. 3 levels: administrator, operator and user |
Client | iVMS-4200, Hik-Connect |
Web Browser | Local service: Chrome 57.0+, Firefox 52.0+
|
Image | |
Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Day/Night Switch |
|
Image Enhancement | BLC, 3D DNR |
Interface | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
Audio | 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
|
Alarm |
|
Reset Key | Yes |
Event | |
Basic Event | Motion detection, video tampering alarm, exception |
Linkage | Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture |
General | |
Power | PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
|
Camera Material | Metal |
Camera Dimension | Ø105 mm × 244.4 mm (Ø4.1" × 9.6") |
Package Dimension | 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6") |
Camera Weight | Approx. 1035 g (2.3 lb.) |
With Package Weight | Approx. 1550 g (3.4 lb.) |
Storage Conditions | -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language |
|
General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Approval | |
EMC | KC (KN 32: 2015, KN 35: 2015)
|
Safety | BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
|
Environment | Reach (Regulation (EC) No 1907/2006)
|
Electrical Safety Protection | IP67 (IEC 60529-2013) |
Datasheet (PDF, inglês, link externo)
Guia Rápido (PDF, inglês, link externo)
Manual (PDF, inglês, link externo)
