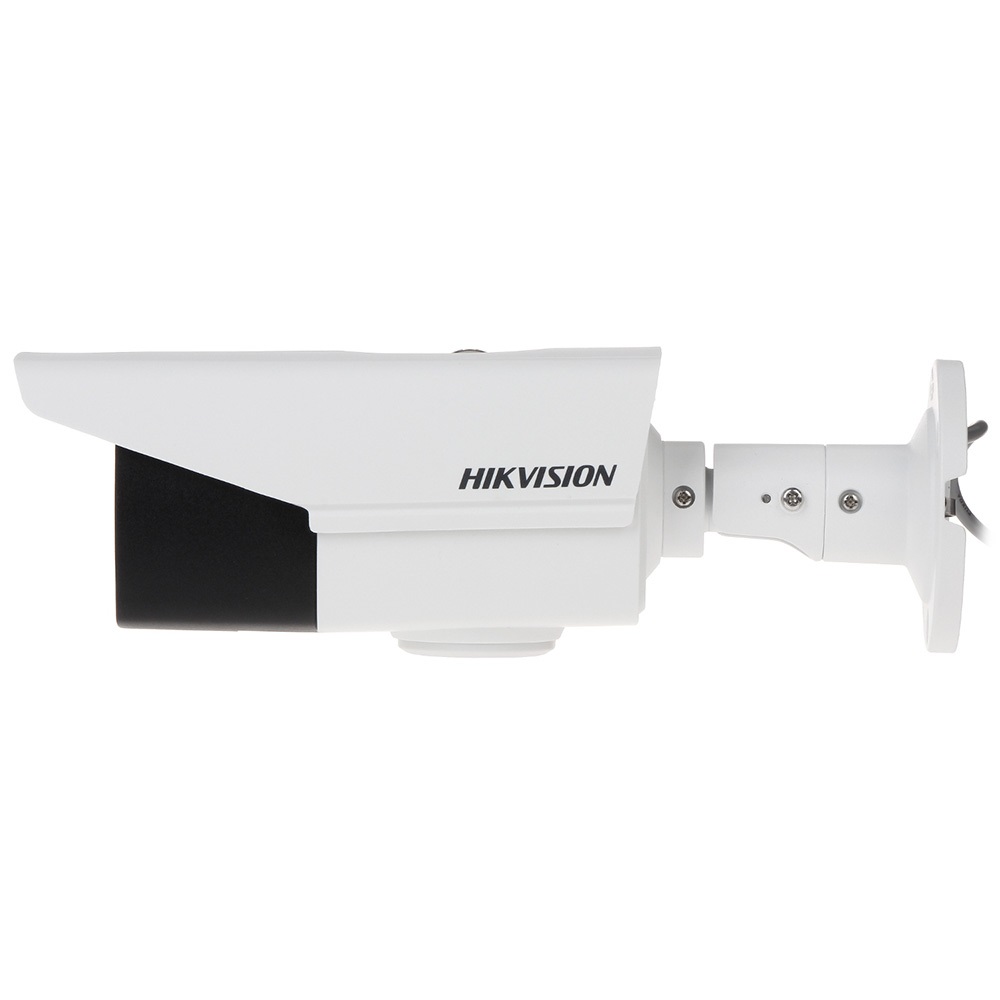

Câmera varifocal motorizada 4K
Camera | |
Image Sensor | 8.29 megapixel progressive scan CMOS |
Max. Resolution | 3840 (H) × 2160 (V) |
Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | PAL: 1/12.5s to 1/50, 000 s,NTSC: 1/15 s to 1/50, 000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
Lens | |
Lens Type | 2.7 mm to 13.5 mm motorized vari-focal lens |
Focal Length & FOV | 108.1° to 45.6° |
Lens Mount | Φ14 |
Image | |
Image Settings | Brightness, Sharpness, DNR, Mirror, Smart IR, HLC |
Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,,2MP@30fps,CVI: 8MP@12.5fps, 8MP@15fps,AHD: 8M@12.5fps, 8M@15fps,CVBS: 960H P/N |
Day/Night Mode | Auto/Color/BW (Black and White) |
Wide Dynamic Range (WDR) | DWDR |
Image Enhancement | BLC |
White Balance | Auto/Manual |
AGC | Yes |
Interface | |
Video Output | Switchable TVI/AHD/CVI/CVBS |
General | |
Material | Front cover: Metal,Main body: Plastic,Bracket: Metal |
Dimension | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") |
Approx. 695 g (1.53 lb.) | |
Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
Power Supply | 9 VDC to 15 VDC,-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC,*You are recommended to use one power adapter to supply the power for one camera. |
Consumption | Max. 8.6 W,-A: Max. 10.8 W |
IR Range | Up to 80 m |
Approval | |
Protection | IP67 |
Datasheet (PDF, inglês, link externo)
Guia Rápido (PDF, inglês, link externo)
Manual (PDF, inglês, link externo)
