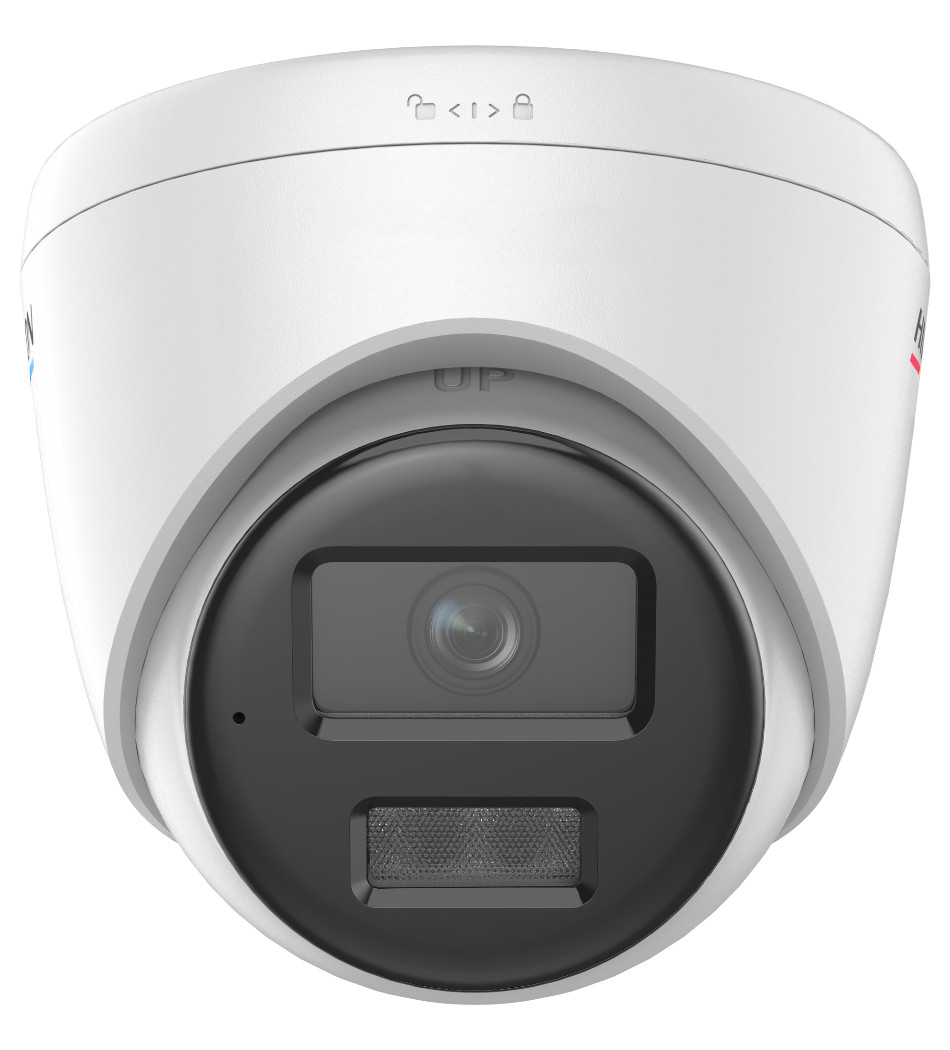

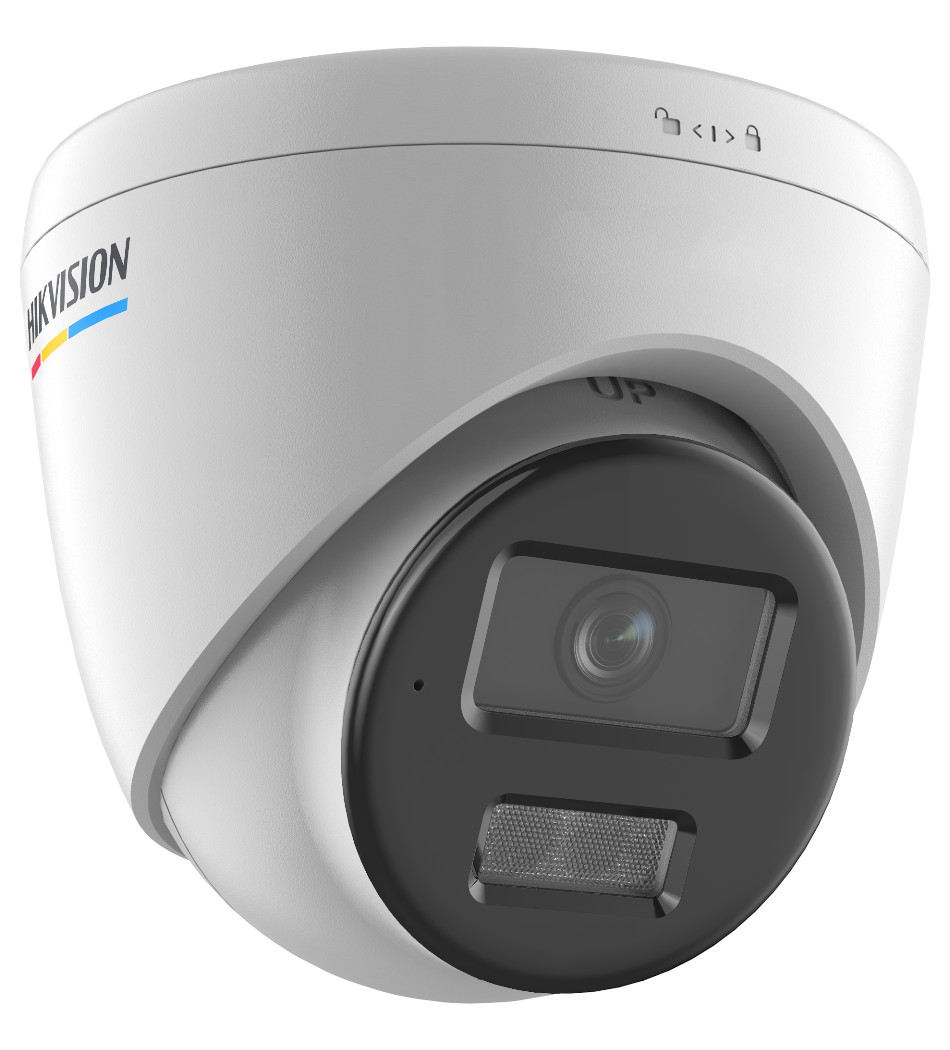

Câmera de rede de torre fixa de 2 MP
Câmera | |
Sensor de imagem | 1/2.8" Progressive Scan CMOS |
Iluminação mínima | Color: 0.001 Lux @ (F1.0, AGC ON) |
Velocidade do obturador | 1/3 s to 1/100,000 s |
Obturador lento | Yes |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
P/N | P/N |
Ampla faixa dinâmica | Digital WDR |
Lentes | |
Tipo de lente e campo de visão |
2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99° |
Abertura | F1.0 |
Montagem da lente | M12 |
Tipo de abertura | Fixed |
Profundidade de foco | 2.8 mm: 1.7 m to 4 mm: 2.1 m to 8 |
luminador | |
Luz complementar inteligente | Yes |
Supplement Light | White |
Faixa de luz branca | Up to 30 m |
Vídeo | |
Main Stream |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
Transmissão secundária |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
Compressão de vídeo | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
Tipo H.264 | BaseLine Profile/Main Profile/High Profile |
Tipo H.265 | Main Profile |
Região de interesse (ROI) | 1 fixed region for main stream |
Rede | |
Visualização ao vivo simultânea | Up to 6 channels |
API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
Protocolos | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
Usuário/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Segurança | Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF |
Client | iVMS-4200, Hik-Connect, Hik-Central |
Navegador da web | Plug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+ |
Image | |
Switch Dia/Noite | Day, Night, Auto, Schedule |
Aprimoramento da imagem | BLC, HLC, 3D DNR |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Interface | |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Intelligent (Traditional Algorithm) | |
Eventos básicos | Motion detection, exception (illegal login) |
Geral | |
Método de vinculação | Upload to FTP/NAS, notify surveillance center, send email, trigger recording, trigger capture *Note: External device is required. |
Idioma do web client | English |
Função geral | Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
Redefinição de software | Reset via web browser and client software |
Condições de armazenamento | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Condições de inicialização e operação | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Fonte de alimentação | 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection |
Consumo de energia e corrente | 12 VDC, 0.30 A, max. 3.6 W PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W |
Power Interface | Ø5.5 mm coaxial power plug |
Material | Main body: metal; enclosure and base: plastic |
Dimensão da câmera | Ø110 × 100.8 mm (4.3" × 4.0") |
Dimensões do pacote | 150 × 150 × 141 mm (5.9" × 5.9" × 5.6") |
Peso da câmera | Approx. 350 g (0.7 lb.) |
Com peso do pacote | Approx. 500 g (1.1 lb.) |
Aprovação | |
EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
Segurança | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
Ambiente | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Proteção | Ingression protection: IP67 (IEC 60529-2013) |
Datasheet (PDF, inglês, link externo)
Guia Rápido (PDF, inglês, link externo)
Manual (PDF, inglês, link externo)
