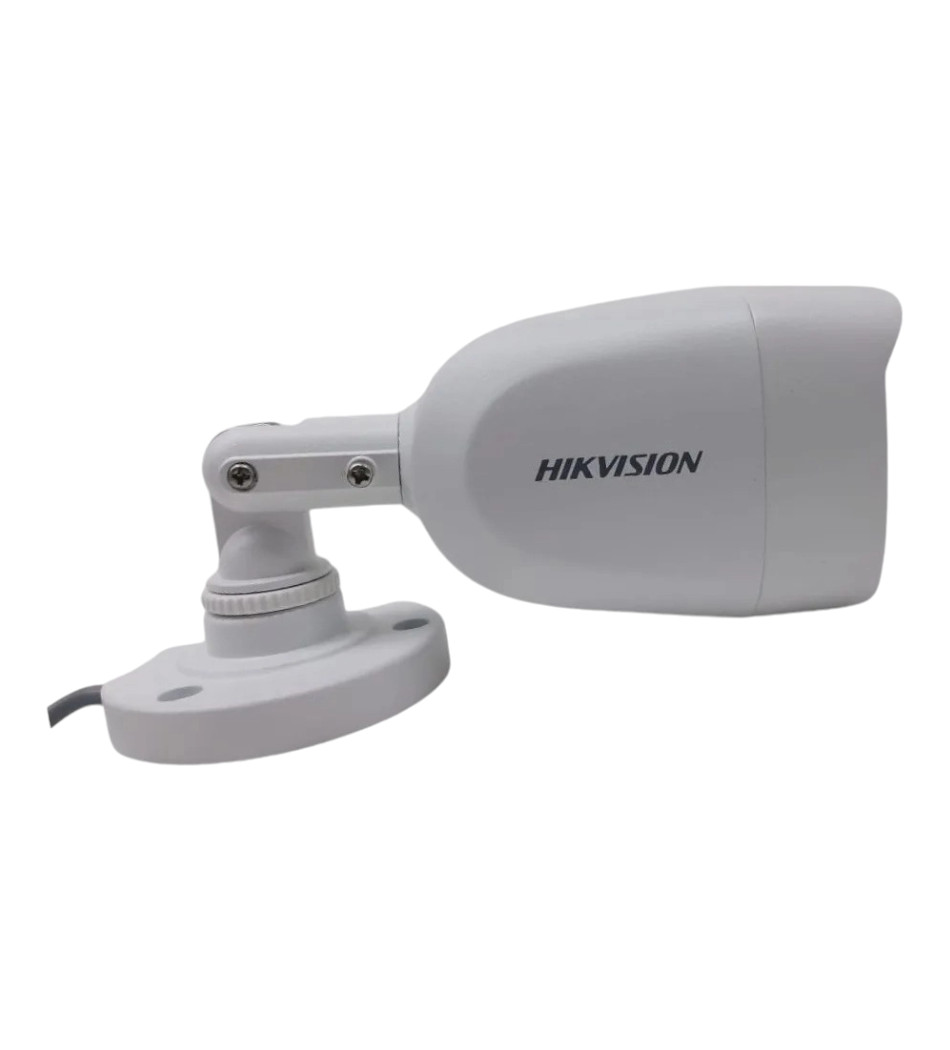

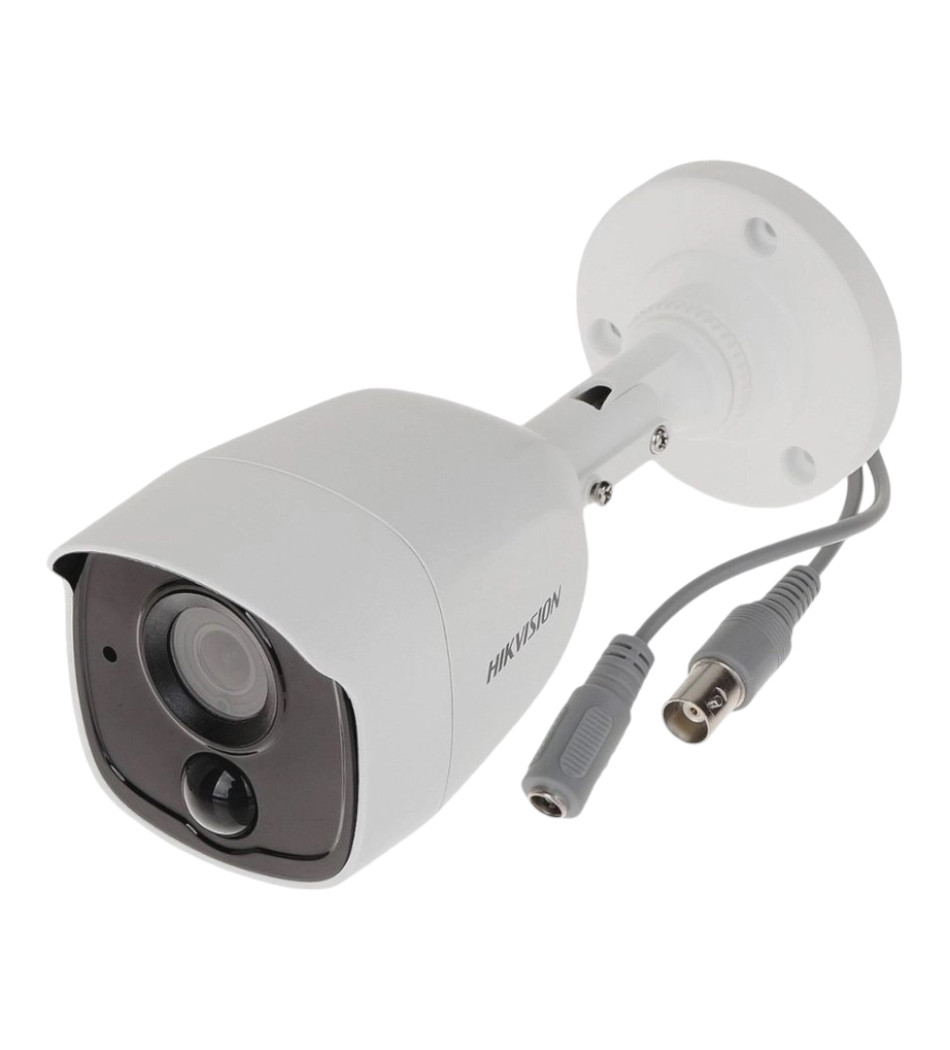

Mini câmera fixa PIR de 2 MP
Camera | |
Image Sensor | 2MP CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time |
PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
Day & Night | ICR |
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
Signal System | PAL/NTSC |
Light Alarm | Yes |
Lens | |
Lens Type | 2.8 mm, 3.6 mm fixed focal lens |
Focal Length & FOV |
2.8 mm, horizontal FOV: 103°, vertical FOV: 56°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 82.2°, vertical FOV: 44°, diagonal FOV: 94° |
Lens Mount | M12 |
Image | |
Image Parameters Switch | STD/HIGH-SAT |
Image Settings | Brightness, Sharpness, DNR , Mirror, Smart IR |
Frame Rate | TVI: 1080P@25fps, 1080P@30fps |
Day/Night Mode | Auto/Color/BW (Black and White) |
Wide Dynamic Range (WDR) | Digital WDR |
White Balance | Auto/Manual |
White Light | AUTO/OFF |
AGC | Support |
Interface | |
Video Output | 1 HD analog output |
General | |
Material |
Front cover: Metal Main body: Plastic |
Dimension | 68 mm × 70 mm × 179.8 mm (2.68" × 2.76" × 7.08") |
Approx. 358 g (0.79 lb.) | |
Operating Condition | ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
Communication | HIKVISION-C |
Language | English |
Power Supply |
12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
Consumption | Max. 3.9 W |
IR Range | Up to 20 m |
Approval | |
Protection | IP67 |
Datasheet (PDF, inglês, link externo)
Manual (PDF, inglês, link externo)
